Metal Gaskets
Metal gaskets is a term often used to describe any size of gasket, shim or washer that is manufactured from elemental metals or alloys such as steel, brass or titanium. Specialist metal alloys such as Inconel, which is composed of nickel, chromium and iron, have properties suited to processes that undergo extreme pressures or temperatures.
We precision engineer a wide range metal gasket for commonplace and critical applications.
Heat Exchanger Gaskets
Manufactured from reinforced graphite sheets for excellent corrosion and high-temperature resistance and compressibility.
Camprofile Gaskets
Reinforced with a tanged steel insert, tanged gaskets provide excellent creep resistance and chemical stability to temperatures of 2500°C.
Classic Car Gasket
Laminated with a thin stainless-steel foil for long-term stability on compression and recovery over a wide temperature and high-pressure range.
Spiral Wound Gaskets
Pure graphite gaskets are widely used where high temperatures and aggressive substances are used in the process.
Metal Shim washers
Graphite based wire mesh reinforced with polymer coating both sides for sealing resistant to a wide range of chemicals at extreme temperatures and pressures.
Ring Joint Gaskets
Graphite based with polymer coating both sides and suitable for sealing resistance to steam and aggressive chemicals up to 650° C and 120 bar.
Metal O Ring Gaskets
Graphite based with polymer coating both sides and suitable for sealing resistance to steam and aggressive chemicals up to 650° C and 120 bar.
Metal Taylor Ring Gaskets
Adding an inner eyelet to the graphite gasket improves the overall resistance and life of the seal, particularly in situations with fluctuating pressures.

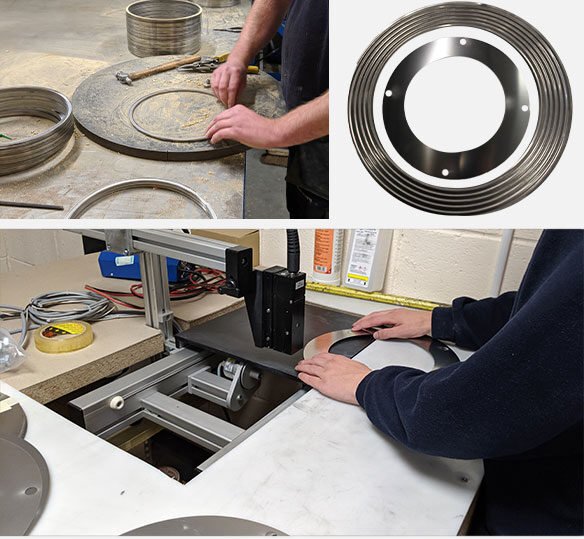

The Manufacture of Metal Gaskets
We manufacture a comprehensive standard range of metal and metal-jacketed gaskets or can precision form components based on custom dimensions. Metal gaskets have applications across a multitude of mechanical and production processes
Clients utilise our full turnkey gasket manufacturing service for help with materials specification, along with CAD gasket design, prototyping, manufacture and worldwide distribution. All gaskets are supplied to recognised national and international standards
Gasket Manufacturing Profiles
- Shim and solid with precision mating surfaces
- Profiled with surface grooves
- Corrugated sheet metal
- Chevron shaped wound layers
METAL GASKET APPLICATIONS
Metal Gasket Applications And Uses
Metal gaskets are most often fabricated for use in applications where extreme temperatures, pressures and chemicals are present. In the case of metal shims and washers, they are used in commonplace electrical and mechanical equipment, such as engines, machinery and home appliances.
- Heat exchangers
- Compressors
- Condensers
- Pumps
- Valves
- Turbines
- Steam Applications
NEED ADVICE?
Talk to a Technician
Our highly experienced technicians can advise you on the best sheet materials and manufacturing processes for a wide range of gasket applications.
Gasket Sheet Materials
We supply a vast range of gasket materials, available to buy directly or order from us. For more information visit the Gasket Sheet Materials Document.
- PTFE Gasket Sheet
- Rubber Gasket Sheet
- Spiral Wound Gasket Sheet
- Teflon Gasket Sheet
- Viton Gasket Sheet
- Graphite Gasket Sheet
- Ferolite Gasket Sheet
- Novus Gasket Sheet
- Flexitallic Gasket Sheet
- Closed Cell Foam Gasket Sheet
- Neoprene Foam Gasket Sheet
- Sponge Gasket Sheet
- Grafoil Gasket Sheet
- Paper Gasket Sheet
- High Temperature Gasket Sheet
- Head Gasket Material Sheet
- Exhaust Gasket Sheet
- Fibre Gasket Sheet
